A-A001

BBP-1001

10''Subwoofer 450W Power Max

Category：

Subwoofers

Summary

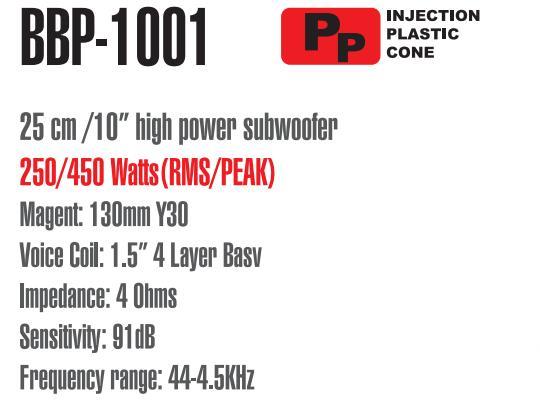

Model NO：BBP-1001 10" SUBWOOFER SPEAKER INJECTION PLASTIC CONE IMPEDANCE:4Ω RATED POWER:250W MAX.POWER:500W FREQUENCY RESPONSE:44-4.5kHz SENSITIVITY:91 dB

Keyword：

10''Subwoofer 450W Power Max

Inquiry Message

Product Description
Dimensions
Company Info.
Specifications

Commodity name: 10''Subwoofer 450W Power Max
Commodity ID: A-A001
型号: BBP-1001

Model NO：BBP-1001 10" SUBWOOFER SPEAKER INJECTION PLASTIC CONE IMPEDANCE:4Ω RATED POWER:250W MAX.POWER:500W FREQUENCY RESPONSE:44-4.5kHz SENSITIVITY:91 dB

Product Description

General Data		Unit
Overall Dimensions	Φ255*107	mm
Nominal Power Handing	250	W
Maximum Power	500	W
Sensitivity	91	dB
Frequency Response	44-4.5kHz	Hz
Cone Material	PAPER CONE
Basket	METAL
Net Weight	2.43	kg
Electrical Data
Nominal Impedance	4	Ohm
DC Resistance	3.2	Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter	Φ38.1	mm
Voice coil wire	CCAW
Voice Coil Height	35	mm
Magnetic Gap Height	6	mm
Magnet system type	high flux ferrite
Voice Coil Robbin	KAPTON
Number of Layers	2
T-S Parameters
Suspension Compliance	0.1494	Cms
Mechanical Q Factor	5.8941	Qms
Electrical Q Factor	0.9485	Qes
Total Q Factor	0.817	Qts
Moving Mass	36.6969	Mms
Eq.Cas AIR Loaded	25.023	Vas
Resonant Frequency	68	Fs
Effective Piston Area	0.0346	SD
