B-C009

DF160-8

Category：

Profession Driver

Summary

Model NO：DF160-8 Specification：standard exporting pakcage Material： Warranty：One Year Customization：Available Sample：Available Trade Mark：OEM Production Capacity：50000PCS/Month

TEL: +86-574-87037083、+86-574-87032813
E-mail: sales@asmelectronics.com

Inquiry Message

Product Description
Dimensions
Company Info.
Specifications

- Commodity name: DF160-8
- Commodity ID: B-C009
Model NO：DF160-8 Specification：standard exporting pakcage Material： Warranty：One Year Customization：Available Sample：Available Trade Mark：OEM Production Capacity：50000PCS/Month

Product Description

Throat Diameter: 1" / 25mm
Impedance: 8 ohms
RMS Power Rating: 40 Watts
Program Power: 80 Watts
Frequency Response: 15kHz - 18kHz.
Recommended Crossover: 2.0kHz
Sensitivity (1W/1m): 107dB
Voice Coil Diameter: 1.7" / 44mm
Winding Material: Aluminum
Inductance: 0.11mH
Diaphragm Material: Mylar
Flux Density: 1.5T

Overall Diameter 4" / 102mm
Mounting Holes (2) M6 holes on 180° - 3" Dia.
Depth 2.4" / 61mm
Net Weight 3.5 lbs. / 1.6 kg.

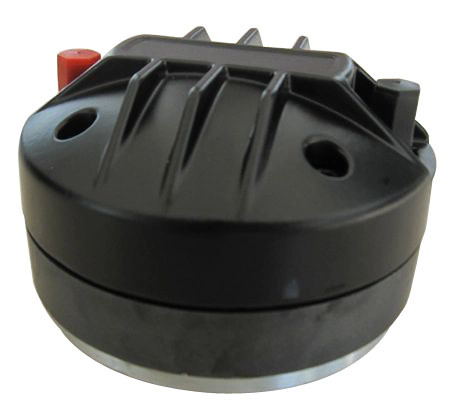

Detailed Photos
Who we are:
Ningbo ASM manufacturing, has become one of the largest company specialized in Sub- woofer, Car speaker, ceiling speaker, boom box, Professional sound. Manufacture in China.

Drawing on the strength of this organization and our passion for detail, Ningbo ASM is committed to providing its customers with the quality products that represents the best value for our customers' audio investment. We are dedicated to your continued satisfaction.
Throat Diameter: 1" / 25mm
Impedance: 8 ohms
RMS Power Rating: 40 Watts
Program Power: 80 Watts
Frequency Response: 15kHz - 18kHz.
Recommended Crossover: 2.0kHz
Sensitivity (1W/1m): 107dB
Voice Coil Diameter: 1.7" / 44mm
Winding Material: Aluminum
Inductance: 0.11mH
Diaphragm Material: Mylar
Flux Density: 1.5T

Overall Diameter 4" / 102mm
Mounting Holes (2) M6 holes on 180° - 3" Dia.
Depth 2.4" / 61mm
Net Weight 3.5 lbs. / 1.6 kg.
